Economic production of heavy duty shipping sacks

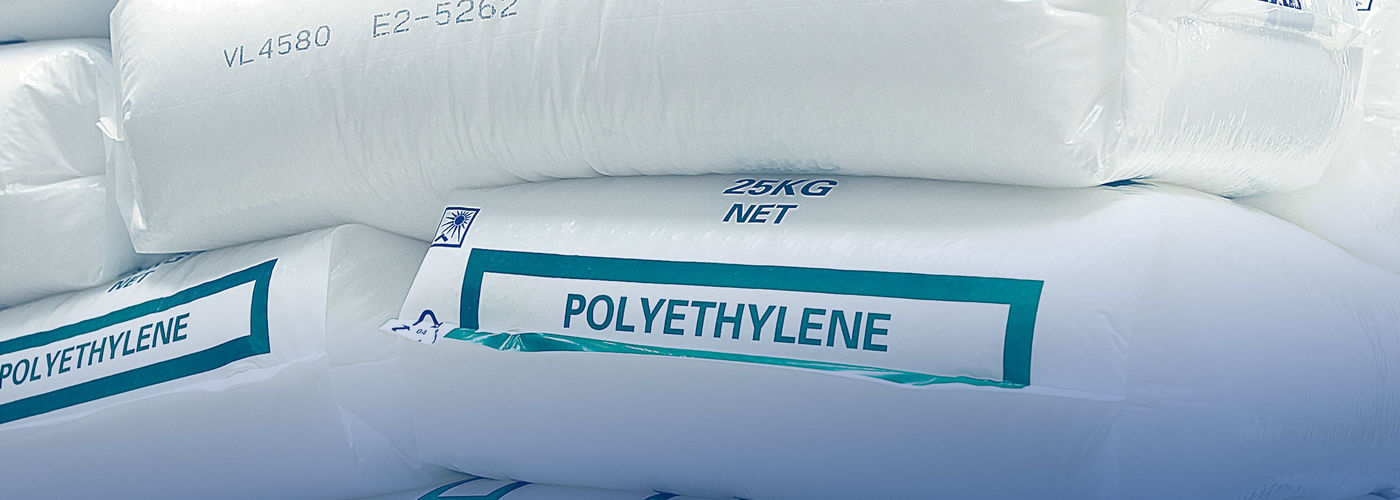

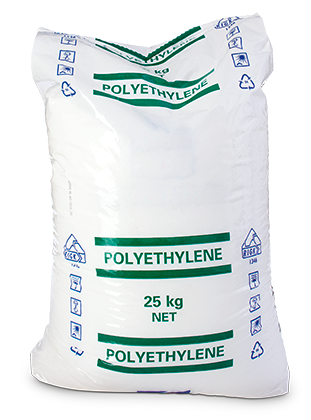

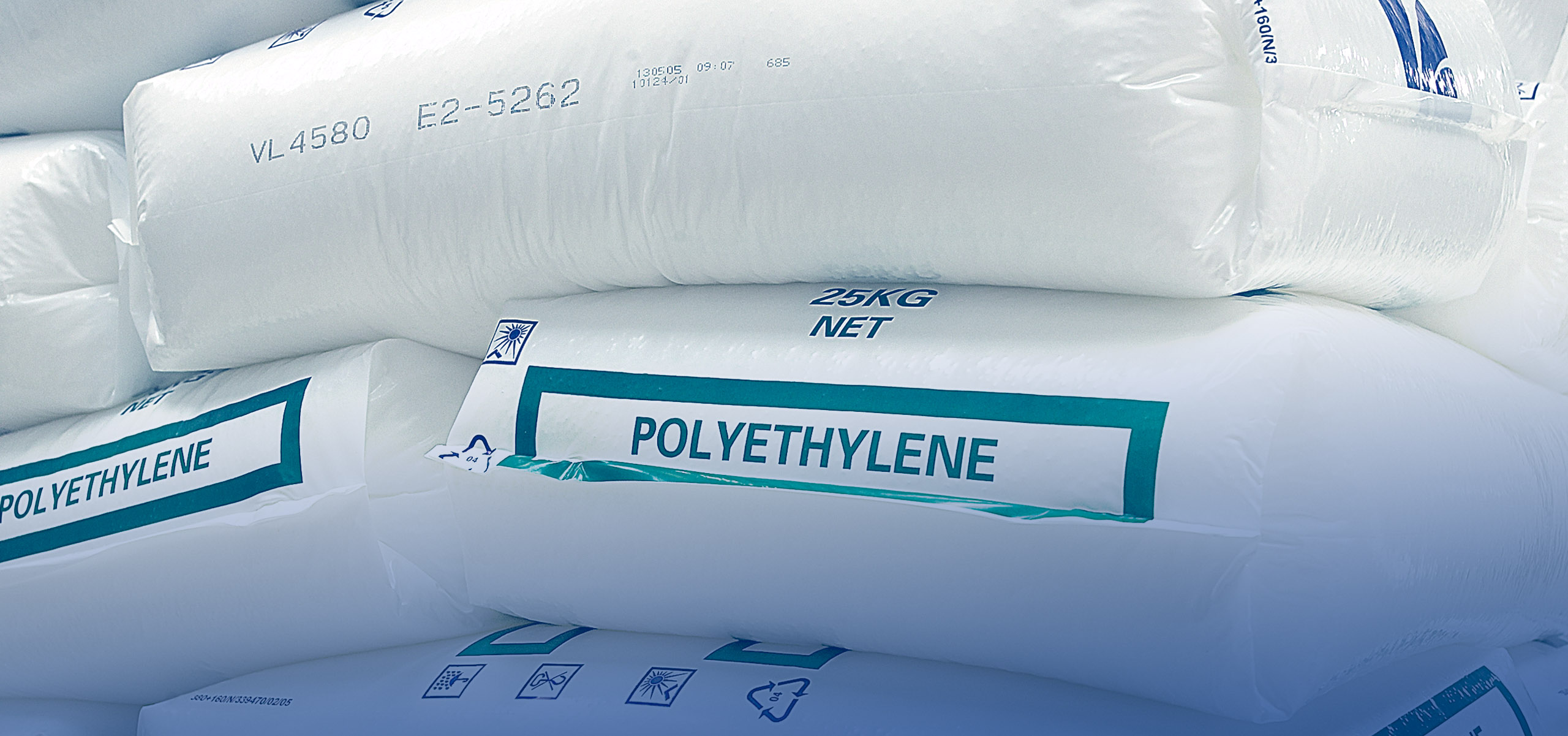

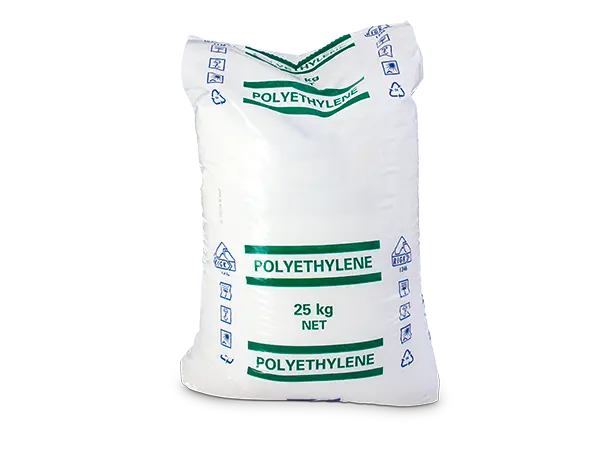

Heavy duty shipping sacks made of plastic film are inexpensive, robust and offer proven solutions to shipping requirements. Although the sacks are mass products, they meet the highest technical requirements. They must be able to safely withstand the forces they are exposed to and meet numerous quality criteria:

High stiffness and excellent sealing characteristics
Dimensional stability even at higher temperatures
High puncture resistance
Low tear propagation
High resistance to all stresses during filling, stacking, transport, storage and even rough handling under local conditions

Economic production of Heavy Duty Shipping Sacks

High stiffness and excellent sealing characteristics
Dimensional stability even at higher temperatures
High puncture resistance
Low tear propagation
High resistance to all stresses during filling, stacking, transport, storage and even rough handling under local conditions

Blown film lines from Alpine

Optimized for the production of Heavy Duty Shipping Sacks

The market for Form-Fill-Seal (FFS) packaging is primarily driven by productivity and efficiency. Hosokawa Alpine's heavy duty shipping sack lines are customized for the formulations and dimensions required to produce heavy duty shipping sacks. This dedicated concept combines

very high output rates with
excellent thickness tolerance and
high reel quality.

The films are further processed on FFS lines designed to produce heavy duty shipping sacks. To this end, the film is fed from a reel as a side gusseted tube. The film tube can either be made directly on the blown film line or be produced by means of a longitudinal welding process from single sheet film made on the blown film line.

We are the experts:

More than 25 years of experience in project planning and production of heavy-duty shipping sack lines
More than 100 Hosokawa Alpine heavy-duty shipping sack systems are in use worldwide

Your advantages

Specially developed line for FFS applications
Highest output with low energy consumption through compact extrusion
Alpine lines are very flexible and designed for a wide range of raw materials and viscosities
Best thickness tolerances and shortest purging times
Screws designed for low shear and low temperature
The modular design allows the subsequent conversion from 3-layer to 5-layer designs
Optional from Hosokawa Alpine: Dual use lines that allow the production of both heavy duty shipping sack films and stretch hood films

Technical details

Optimized screw design for controlled melt temperature

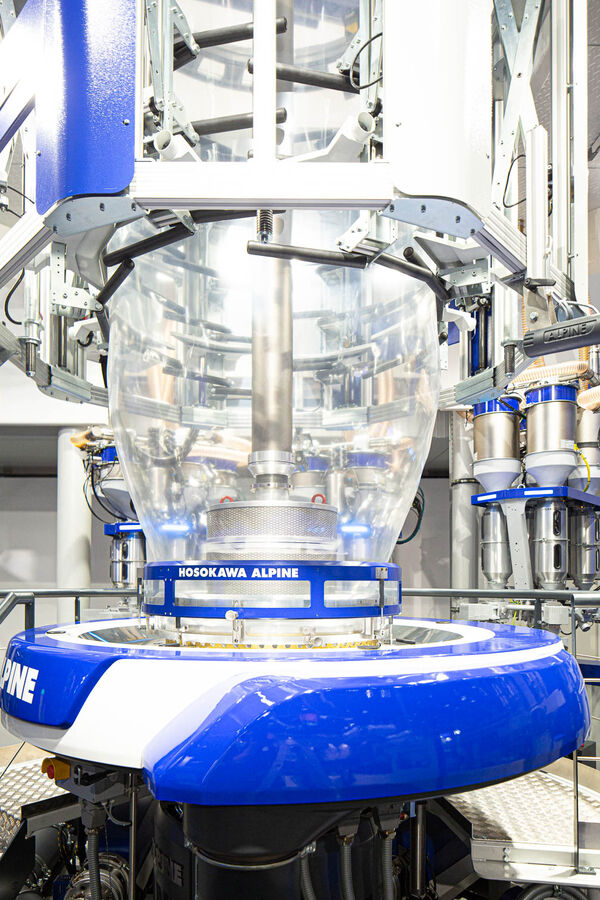

Die head: Alpine X-Die (minimum residence time and low pressure)
Die diameter: 160 mm or 180 mm
Layflat: max. 800 mm
Number of layers: 3/5

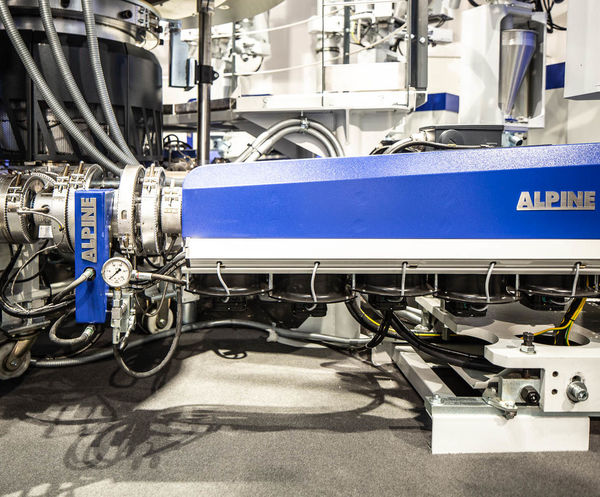

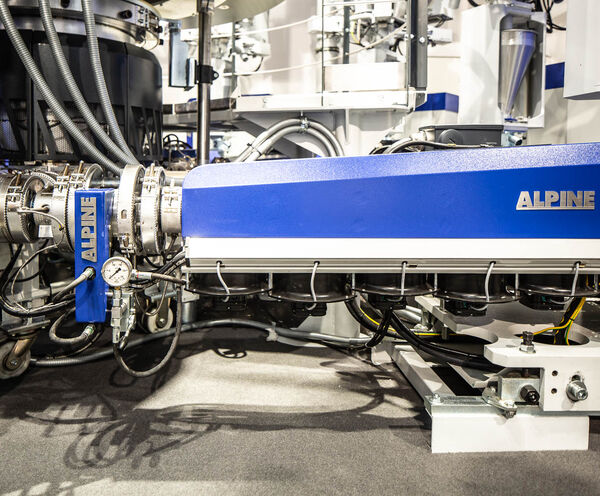

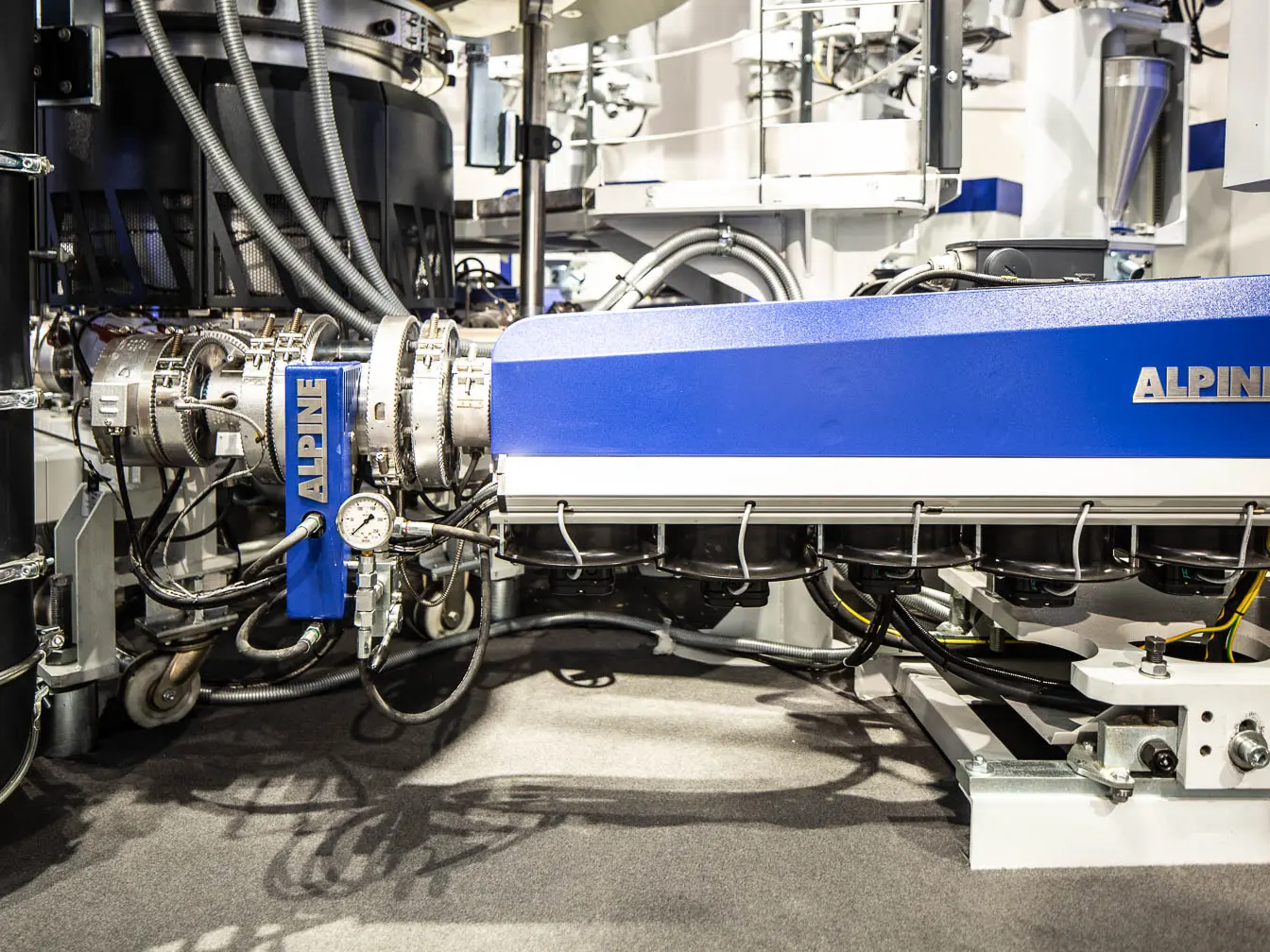

Extruder Screw diameter: 50 mm, 65 mm, 75 mm
Raw material: mLLDPE, LDPE, HDPE + additiv and masterbatch white

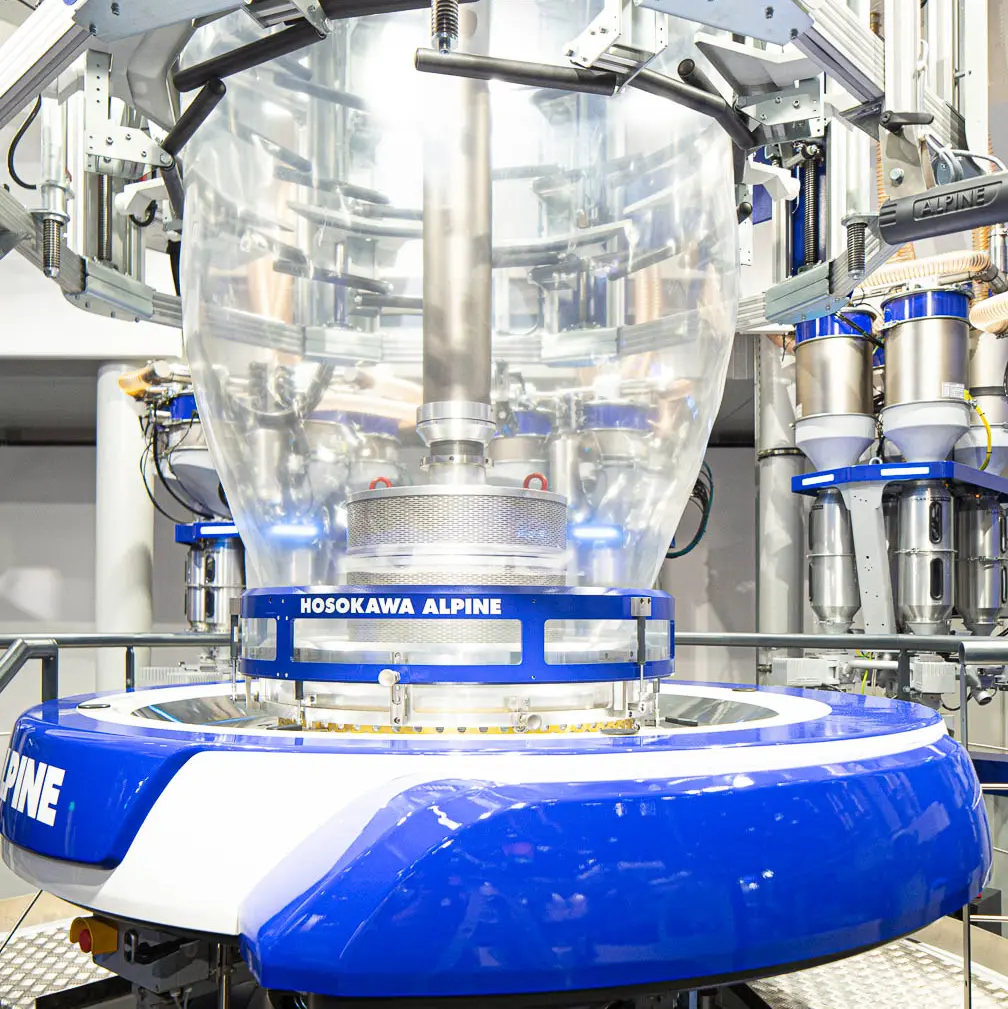

Alpine internal cooling with unique parrafin collection
Single winderr: WS8 for heavy duty shipping sacks, reel diameter up to 1,500 mm
Installation height: appr. 17 m
Optional: inline and offline printing unit with 4/6 colours
Optional: gusetting und embossing tower
